Merkel Wiper P6
Product search
Cart 0
Products
Quantity
Product categories
Brands
Part No.

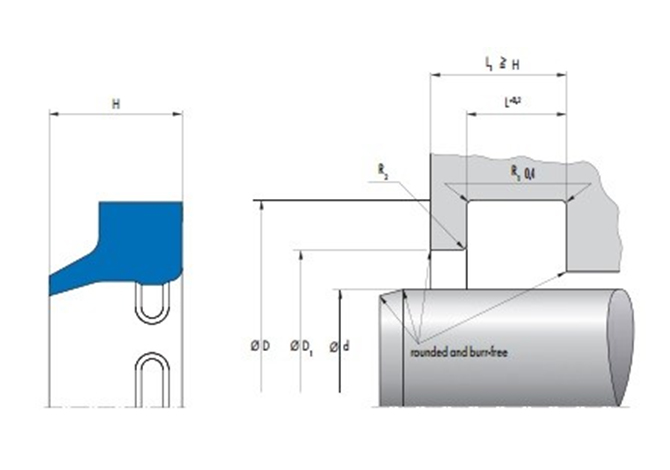

Installation dimensions
  • Inside Diameter ID
    mm
  • Outside Diameter OD
    mm
  • Groove section H1
    mm
  • Groove Width H2
    mm

Merkel Wiper P6

Installation & Handling

Installation dimensions

Material Properties

Seal Capabilities

Part No. ID OD H1 H2 Quantity Pick
24005167 900 925 12.7 20
24182227 880 905 12.7 20
24082304 850 875 12.7 20
24362636 800 830 15.2 25
24069967 800 825 12.7 20
24100033 780 805 12.7 20
24343859 770 795 12.7 20
24104001 750 775 12.7 20
24181926 720 745 12.7 20
24075142 710 735 12.7 20
24356247 700 725 12.7 20
24170551 680 705 12.7 20
24075321 670 695 12.7 20
24133481 640 665 12.7 20
24073341 630 655 12.7 20
24138641 610 635 12.7 20
24112281 600 625 12.7 20
24085742 575 600 12.7 20
24079694 560 585 12.7 20
24092902 555 580 12.7 20
24005152 530 560 15.2 25
24193087 520 550 15.2 25
24350197 510 540 15.2 25
24239807 500 520 10.2 18
24005145 500 520 10.2 18
24095767 460 480 10.2 18
24216086 450 470 10.2 18
24005139 450 470 10.2 18
24197297 440 460 10.2 18
24073523 430 455 12.7 20
24222589 420 450 15.2 25
24005133 420 450 15.2 25
24090552 420 440 10.2 18
24149417 400 420 10.2 18
24005129 400 420 10.2 18
24067592 380 410 15.2 25
24005124 380 410 15.2 25
24114551 380 400 10.2 18
24327520 370 390 10.2 18
24374800 365 390 12.7 20
24375894 360 380 10.2 18
24108805 350 380 15.2 25
24068245 350 375 12.7 20
24123970 320 340 10.2 18
24170871 300 320 10.2 18
24005100 300 320 10.2 18
24005096 290 305 7.7 15
24145755 290 305 7.7 13.5
49014353 280 310 15.2 25
24339192 270 290 10.2 18
24005089 270 290 10.2 18
24005085 265 280 10.2 16
24005083 260 280 10.2 18
24064910 250 270 10.2 18
24005077 250 270 10.2 18
24143309 240 260 10.2 18
24005075 240 260 10.2 18
24089283 230 250 10.2 18
24005069 230 250 10.2 18
24005068 230 245 10.2 16
24005067 225 245 10.2 18
24066033 220 240 10.2 18
24005063 220 240 10.2 18
24005062 220 235 10.2 16
24293787 210 225 10.2 16
24231362 205 220 7.7 16
24031705 200 220 10.2 18
24059854 190 210 10.2 18
24072417 180 200 10.2 18
24030705 160 175 10.2 16
24048705 150 165 10.2 16
24043305 140 155 10.2 16
24047507 120 132.2 7.2 12
24050006 120 130.6 5.3 7
24041405 115 127.2 7.2 12
24042306 110 122.2 7.2 12
24046106 105 117.2 7.2 12
24031905 100 112.2 7.2 12
24051358 100 108.6 5.3 7.1
24033905 90 102.2 7.2 12
24031805 85 97.2 7.2 12
24032405 80 92.2 7.2 12
24044959 80 88.6 5.3 7
24043206 75 87.2 7.2 12
24046105 70 80.6 5.3 7
24147620 70 78.6 5.3 7
24040105 65 75.6 5.3 7
24040605 63 73.6 5.3 7
24004856 60 75 8.2 13
24038207 60 70.6 5.3 7
24049005 56 66.6 5.3 7
24049905 55 65.6 5.3 7
24036259 50 58.6 5.3 7
24056947 45 55.6 5.3 7
24040959 45 53.6 5.3 7
24044057 42 50.6 5.3 7
24033859 35 43.6 5.3 7
24050857 32 40.6 5.3 7
24040159 30 38.6 5.3 7
24032459 28 36.6 5.3 7
24041104 25 33.6 5.3 7
24138825 24 32.6 5.3 7
24038859 20 28.6 5.3 7
24045457 16 24.6 5.3 7
