Part No.
Installation dimensions
  • Inside Diameter ID
    mm
  • Outside Diameter OD
    mm
  • Groove section H1
    mm
  • Groove Width H2
    mm

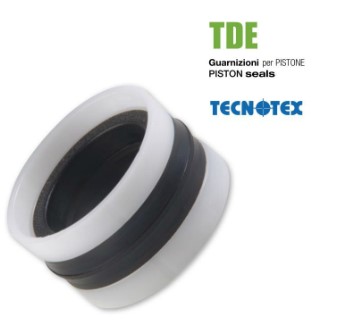

TDE

Installation & Handling

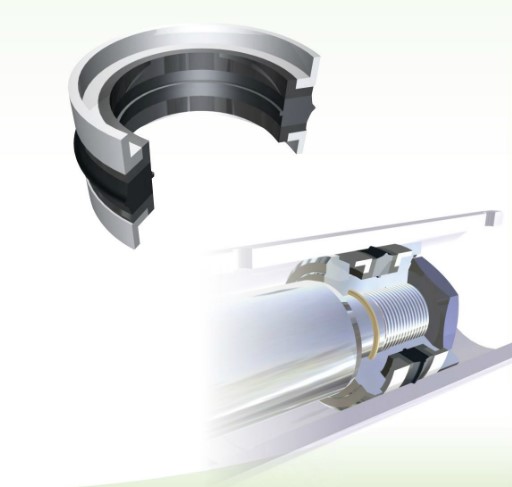

Installation dimensions

Material Properties

Seal Capabilities

Download Technical Details (PDF)
Part No. ID OD H1 H2 Quantity Pick
TDE 1046 220 250 35.4
TDE 1045 190 220 35.4
TDE 1044 180 210 32.4
TDE 1043 170 200 35.4
TDE 1042 160 190 35.4
TDE 1041 150 180 35.4
TDE 1040 160 180 31.4
TDE 1039/1 152.4 177.8 32.15
TDE 1039 140 170 25.4
TDE 1038/1 130 162 25.4
TDE 1038 130 160 25.4
TDE 1037 130 155 25.4
TDE 1036 125 150 25.4
TDE 1035 120 150 38.4
TDE 1034 120 145 25.4
TDE 1033 120 140 25.4
TDE 1032 115 140 25.4
TDE 1031 110 135 25.4
TDE 1030 105 130 25.4
TDE 1029/1 101.6 127 32.15
TDE 1029 105 125 25.4
TDE 1028 100 125 32.4
TDE 1027 100 125 25.4
TDE 1026 100 120 25.4
TDE 1025 95 120 22.4
TDE 1024 90 115 22.4
TDE 1023/1 88.9 114.3 32.15
TDE 1023 90 110 25.4
TDE 1022 85 110 25.4
TDE 1021 85 110 22.4
TDE 1020 80 105 22.4
TDE 1019/1 82.55 101.6 24.21
TDE 1019 80 100 25.4
TDE 1018 75 100 22.4
TDE 1017 75 95 22.4
TDE 1016/1 70 90 25.4
TDE 1016 70 90 22.4
TDE 1015 65 85 22.4
TDE 1014 63 83 22.4
TDE 1013 60 80 22.4
TDE 1012/1 57.15 76.2 22.4
TDE 1012 56 75 24.4
TDE 1011 55 75 22.4-0
TDE 1010 50 70 22.4
TDE 1009 50 65 18.4
TDE 1008 47 63 19.4
TDE 1007/1 44 60 20
TDE 1007 44 60 18.5
TDE 1006 39 55 18.4
TDE 1005 34 50 18.4
TDE 1004/1 30 50 25.4
TDE 1004 29 45 18.4
TDE 1003 24 40 18.4
TDE 1002 22 35 15.4
TDE 1001 17 30 15.4
TDE 1000 12 25 12.4
