Part No.
Installation dimensions
  • Inside Diameter ID
    mm
  • Outside Diameter OD
    mm
  • Groove section H1
    mm
  • Groove Width H2
    mm

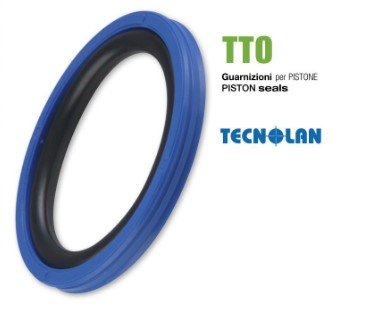

TTO

Installation & Handling

Installation dimensions

Material Properties

Seal Capabilities

Part No. ID OD H1 H2 Quantity Pick
TTO 250 229 250 8.1
TTO 240 219 240 8.1
TTO 230 209 230 8.1
TTO 220 199 220 8.1
TTO 210 189 210 8.1
TTO 200 179 200 8.1
TTO 190 169 190 8.1
TTO 185 164 185 8.1
TTO 180 159 180 8.1
TTO 170 149 170 8.1
TTO 160 139 160 8.1
TTO 150 129 150 8.1
TTO 145 124 145 8.1
TTO 140 119 140 8.1
TTO 135 114 135 8.1
TTO 130 114.5 130 6.3
TTO 127 111.5 127 6.3
TTO 125 109.5 125 6.3
TTO 120 104.5 120 6.3
TTO 110 94.5 110 6.3
TTO 105 89.5 105 6.3
TTO 100 84.5 100 6.3
TTO 95 79.5 95 6.3
TTO 90 74.5 90 6.3
TTO 85 69.5 85 6.3
TTO 80/1 69 80 4.2
TTO 80 64.5 80 6.3
TTO 75/1 64 75 4.2
TTO 75 59.5 75 6.3
TTO 72 61 72 4.2
TTO 70/1 59 70 4.2
TTO 70 54.5 70 6.3
TTO 68 57 68 4.2
TTO 65/1 54 65 4.2
TTO 65 49.5 65 6.3
TTO 63/1 52 63 4.2
TTO 63 47.5 63 6.3
TTO 60/1 49 60 4.2
TTO 60 44.5 60 6.3
TTO 57 46 57 4.2
TTO 55/1 44 55 4.2
TTO 55 39.5 55 6.3
TTO 50/1 39 50 4.2
TTO 50 34.5 50 6.3
TTO 48 37 48 4.2
TTO 45/1 34 45 4.2
TTO 45 29.5 45 6.3
TTO 42 31 42 4.2
TTO 40/1 29 40 4.2
TTO 40 24.5 40 6.3
TTO 38 30.5 38 3.2
TTO 36 28.5 36 3.2
TTO 35 27.5 35 3.2
TTO 32/1 24.5 32 3.2
TTO 32 21 32 4.2
TTO 30 22.5 30 3.2
TTO 25/1 17.5 25 3.2
TTO 25 14 25 4.2
TTO 20 12.5 20 3.2
TTO 16 8.5 16 3.2
TTO 15 7.5 15 3.2
