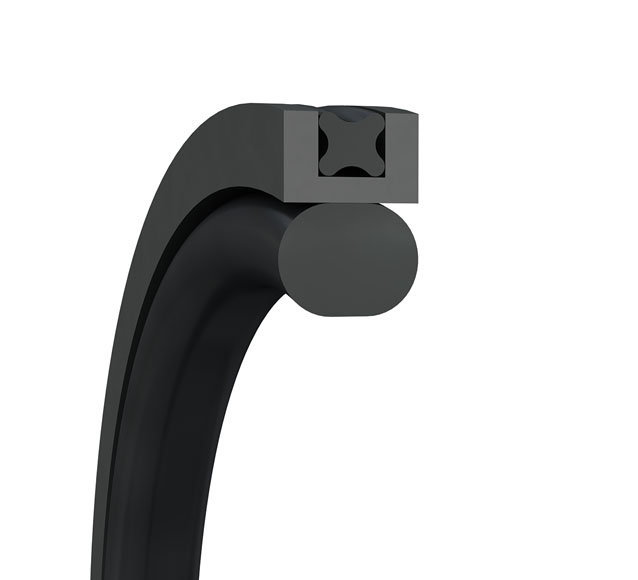

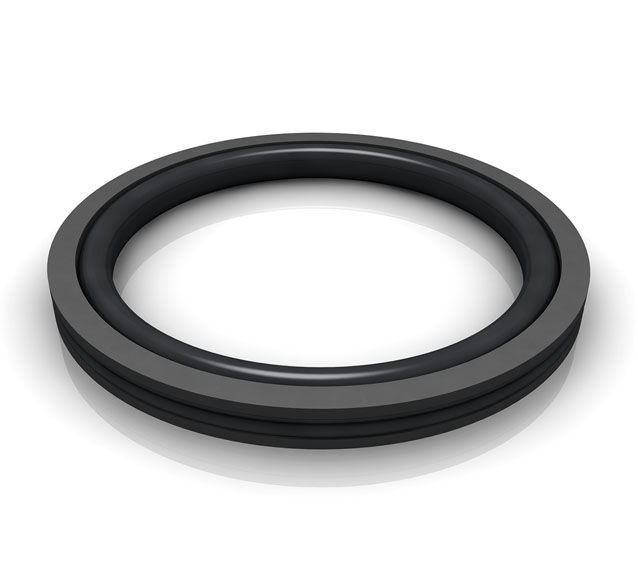

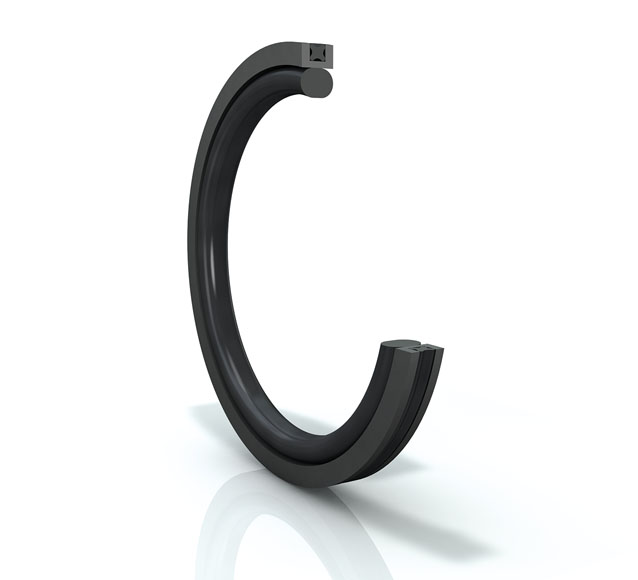

The Turcon® AQ-Seal® is a double-acting seal consisting of a seal ring of high-grade modified Turcon® material, a X-Ring Seal and an O-Ring as energizing element. The Turcon® seal ring and the X-Ring Seal together assume the dynamic sealing function whilst the O-Ring performs the static sealing function. The AQ-Seal® is supplied as standard with radial notches on both sides. These ensure direct pressurizing of the seal under all operating conditio

• Pressure : Up to 40 MPa Speed : Up to 2 m/s
• Temperature : -30 °C to +200 °C (depending on O-Ring and X-Ring material)
• Media : Mineral oil-based hydraulic fluids, flame retardant hydraulic fluids, environmentally safe hydraulic fluids (bio-oils), phosphate ester and others, depending on the seal, O-Ring and X-Ring Seal material compatibility
• Clearance : The maximum permissible radial clearance Smax. is shown in the table on the next page as a function of the operating pressure and functional diameter.

• High sealing effect in applications requiring media separation, e.g. fluid/fluid or fluid/gas
• Double security through the combination of low-friction special materials with elastomer seals
• Simple groove design, small installation space, interchangeable with Turcon® Glyd Ring® T and Turcon® Stepseal® K installation according to ISO 7425-1
• Outstanding sliding properties, no stick-slip effect
