Merkel U-Ring NI 300
Product search
Cart 0
Products
Quantity
Product categories
Brands
Part No.
Installation dimensions
  • Inside Diameter ID
    mm
  • Outside Diameter OD
    mm
  • Groove section H1
    mm
  • Groove Width H2
    mm

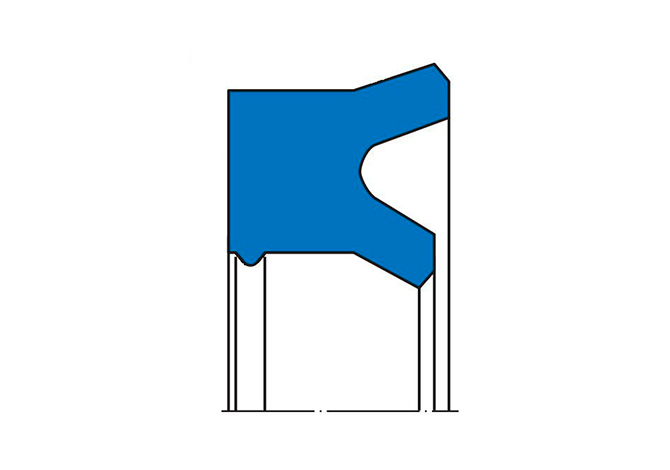

Merkel U-Ring NI 300

Installation & Handling

Installation dimensions

Material Properties

Seal Capabilities

Part No. ID OD H1 H2 Quantity Pick
21569 180 210 18 19
401907 180 205 15 16
18793 180 200 15 16
21561 170 190 15 16
401896 160 185 15 16
21538 160 180 15 16
21522 150 180 18 19
18792 150 170 15 16
21520 140 170 18 19
401895 140 165 15 16
21518 140 160 15 16
21516 140 160 12 13
21514 130 150 15 16
21511 130 150 12 13
21505 125 155 18 19
401892 125 150 15 16
21501 125 145 15 16
21852 125 145 12 13
21500 120 140 15 16
21497 120 140 12 13
21493 120 135 15 16
407165 115 140 15 16
401889 110 135 15 16
21486 110 130 15 16
21849 110 130 12 13
30970 110 125 15 16
401873 100 125 15 16
21483 100 120 15 16
18789 100 120 12 13
21482 100 115 12 13
324248 95 115 12 13
335953 95 110 12 13
18786 90 110 12 13
21474 90 105 12 13
344874 90 105 11.5 12.5
29310 90 100 12 13
21472 85 105 12 13
21466 85 100 12 13
432307 85 95 12 13
337358 80 100 15 16
18781 80 100 12 13
21455 80 95 12 13
21454 80 95 10 11
21447 80 90 12 13
127310 80 90 10 11
369026 77 87 12 13
18779 75 90 12 13
21446 75 90 10 11
21440 75 85 12 13
18777 70 90 12 13
21438 70 85 12 13
319968 70 85 11.5 12.5
18776 70 85 10 11
21430 70 80 12 13
380798 68 78 12 13
18773 65 85 12 13
21429 65 80 12 13
21420 65 75 12 13
21407 63 83 12 13
21406 63 78 10 11
21396 63 73 12 13
18772 60 80 12 13
21395 60 75 12 13
531745 60 75 11.5 12.5
21391 60 75 10 11
21386 60 70 12 13
18771 60 70 10 11
472965 58 68 10 11
21379 56 76 12 13
21374 56 71 10 11
21368 56 66 10 11
21365 55 75 12 13
21364 55 70 12 13
18766 55 70 10 11
21361 55 65 12 13
21357 55 65 10 11
384050 55 65 8 9
523147 55 63 8 9
112670 52 62 10 11
21349 50 70 12 13
457406 50 65 11.5 12.5
21344 50 65 10 11
18765 50 60 10 11
420826 50 59 8 9
429254 50 58 8 9
413959 46 56 10 11
21339 45 65 12 13
381990 45 60 11.5 12.5
18764 45 60 10 11
18763 45 55 10 11
429849 45 55 7 8
413930 43 53 10 11
116182 42 52 10 11
21338 40 60 12 13
337351 40 55 11.5 12.5
21326 40 55 10 11
18760 40 50 10 11
319563 40 50 7 8
429264 40 48 8 9
401832 38 55 10 11
375755 37 47 10 11
368268 37 47 8 9
21324 36 56 12 13
21317 36 51 10 11
21315 36 46 10 11
319965 36 46 7 8
429359 36 44 6 7
18759 35 50 10 11
18756 35 45 10 11
429378 35 43 6 7
21307 32 47 10 11
401826 32 45 10 11
21306 32 42 10 11
429370 32 40 8 9
315748 32 40 6.5 7.5
406663 32 40 5.5 6.3
401781 30 50 12 13
21305 30 45 10 11
21286 30 40 10 11
429363 30 38 6 7
21285 28 43 10 11
21282 28 38 10 11
21280 28 38 8 9
319964 28 38 7 8
5148 28 36 8 9
370114 26 36 10 11
401770 25 45 12 13
18741 25 40 10 11
21275 25 35 10 11
21274 25 35 8 9
337346 25 33 5.5 6.3
336462 23 35 10 11
401668 22 35 10 11
21272 22 32 10 11
21271 22 32 8 9
381991 22 32 7 8
429357 22 30 5.5 6.3
401667 20 35 10 11
21269 20 30 10 11
18735 20 30 8 9
337344 20 28 5.5 6.3
21266 18 28 8 9
81789 18 26 8 9
364610 18 26 5.5 6.3
18733 16 26 8 9
337342 16 24 5.5 6.3
21265 15 25 8 9
21263 14 24 8 9
435813 14 22 5.5 6.3
21261 12 22 8 9
337340 12 22 7 8
68421 12 20 8 9
337339 12 20 5.5 6.3
21258 10 20 8 9
