MERKEL U-RING T23
Product search
Cart 0
Products
Quantity
Quotes request
Product categories
Brands
Part No.
Installation dimensions
  • Inside Diameter ID
    mm
  • Outside Diameter OD
    mm
  • Groove section H1
    mm
  • Groove Width H2
    mm

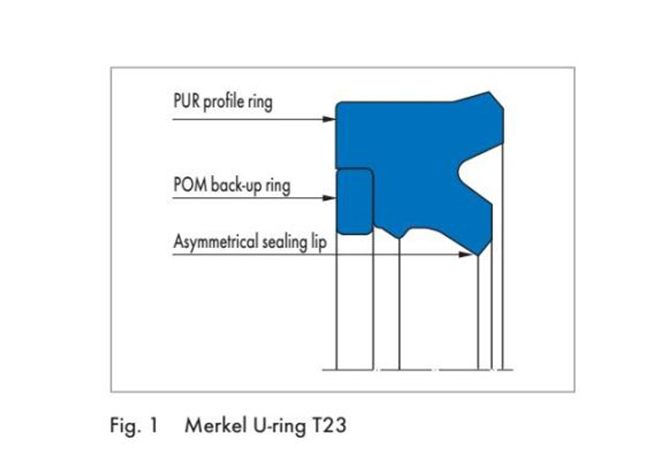

MERKEL U-RING T23

Installation & Handling

Installation dimensions

Material Properties

Seal Capabilities

Download Technical Details (PDF)
Part No. ID OD H1 H2 Quantity Pick
24332132 180 200 19.1 21
24377491 180 195 11.4 12.5
24377490 170 190 14.6 16
24306416 170 185 14.6 16
24302160 140 160 14.6 16
24302159 125 145 14.6 16
24332131 125 140 11.4 12.5
24344467 120 135 14.6 16
24265876 110 130 14.6 16
24377483 110 125 14.6 16
24302127 100 120 14.6 16
24377482 100 115 14.6 16
24265875 90 110 14.6 16
24332093 80 100 14.6 16
24302158 80 95 11.4 12.5
24295613 70 85 11.4 12.5
24302157 60 75 11.4 12.5
24302156 50 65 11.4 12.5
24302155 40 55 11.4 12.5
