Merkel Guide Ring Goviex SBK

Installation & Handling

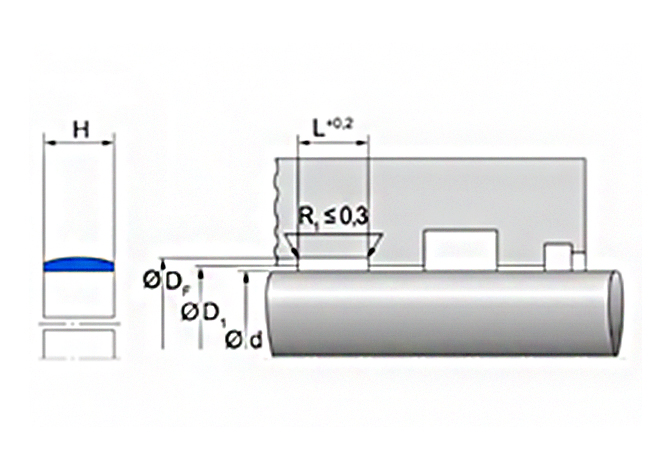

Installation dimensions

Material Properties

Seal Capabilities

Part No. ID OD H1 H2 Quantity Pick
527116 1626 1634 39.5 40
528780 1625.6 1633.6 39.5 40
531904 1350 1358 39.5 40
531144 1340 1348 39.5 40
49002141 1145 1153 39.5 40
530019 1130 1138 24.5 25
533289 1100 1108 34.5 35
49017424 1100 1108 24.5 25
49017423 1000 1008 24.5 25
49004975 990 996.3 29.5 30
24376186 970 978 24.5 25
49020525 890 898 34.5 35
49003043 890 898 19.8 20
528716 820 828 39.5 40
528715 820 828 24.5 25
526190 800 808 24.5 25
49015647 790 798 39.5 40
49003032 790 798 34.5 35
531677 790 798 19.8 20
24380545 760 768 24.5 25
49000239 740 748 24.5 25
49015646 730 738 39.5 40
49012632 710 718 39.5 40
49017422 710 718 24.5 25
529519 700 708 39.5 40
24378494 650 658 34.5 35
524927 630 638 24.5 15
49003964 600 608 39.5 40
24375325 600 608 24.5 25
528326 600 605 24.5 25
24375324 560 568 24.5 25
49005155 550 558 39.5 40
49016779 550 558 24.5 25
49018518 540 548 39.5 40
49004922 530 538 39.5 40
24375323 530 538 24.5 25
530266 510 518 24.5 25
24379324 500 508 39.5 40
24375322 500 508 24.5 25
24378392 500 508 19.8 20
24375321 460 468 24.5 25
49001818 460 465 24.5 25
24380453 450 458 24.5 25
49004008 445 453 39.5 40
526028 440 448 39.5 40
24375320 440 448 24.5 25
24378391 440 448 19.8 20
24379322 420 428 39.5 40
527921 420 425 24.5 25
526027 400 408 39.5 40
24375319 400 408 24.5 25
49012525 400 405 24.5 25
24380781 400 405 14.8 15
24380276 390 395 24.5 25
24379245 380 388 39.5 40
24379138 380 388 24.5 25
531516 380 385 24.5 25
49000975 370 378 34.5 35
24379042 370 378 24.5 25
531873 360 368 39.5 40
24375318 360 368 24.5 25
24380275 360 365 24.5 25
24379041 350 358 24.5 25
24380779 350 355 14.8 15
24379040 330 338 24.5 25
532132 320 328 39.5 40
528486 320 328 29.5 30
24379076 320 328 24.5 25
24380272 320 325 24.5 25
24380778 320 325 14.8 15
24379155 300 308 39.5 40
24380482 300 308 24.5 25
528857 292 297 24.5 25
24379491 290 298 24.5 25
24379158 280 288 14.8 15
24378040 280 288 39.5 40
24379347 280 288 34.5 35
24379038 280 285 24.5 25
24380777 280 285 14.8 15
24380271 270 275 24.5 25
49003297 260 268 24.5 25
24378039 260 268 39.5 40
49002907 255 260 24.5 25
49002878 250 256 24.5 25
24379037 250 255 24.5 25
24380273 250 255 14.8 15
24378038 240 248 39.5 40
530267 240 245 24.5 25
24380255 240 245 14.8 15
24379253 230 235 24.5 25
24380269 230 235 14.8 15
24378037 220 228 39.5 40
24379036 220 225 24.5 25
24372435 220 225 14.8 15
530265 210 218 24.5 25
24380694 210 215 14.8 15
24378036 200 208 39.5 40
24378003 200 205 34.5 35
24379075 200 205 24.5 25
24380775 200 205 14.8 15
49002019 190 198 34.5 35
24380270 190 195 14.8 15
24378035 180 188 39.5 40
530602 180 185 39.5 40
526594 180 185 29.5 30
24379035 180 185 24.5 25
24380693 180 185 14.8 15
24378034 170 178 39.5 40
530870 170 178 24.5 25
524993 170 175 24.5 25
24380692 170 175 14.8 15
24370365 160 168 39.5 40
24375641 160 165 24.5 25
24380782 160 165 14.8 15
24380691 155 160 14.8 15
24380690 145 150 14.8 15
528995 140 148 39.5 40
528820 140 145 24.5 25
24379074 125 130 24.5 25
24380163 125 130 14.8 15
24380557 120 125 34.5 35
529483 120 125 19.8 20
525470 120 125 14.8 15
49000534 112 117 19.8 20
24358242 110 118 14.8 15
24377187 110 115 24.5 25
24379369 110 115 19.8 20
24358241 110 113.2 14.5 15
49005018 100 108 24.5 25
24379370 100 105 19.8 20
24380162 100 105 14.8 15
24379355 95 100 14.8 15
49002108 93 98 19.8 20
24359046 90 98 19.8 20
24380556 90 95 34.5 35
528119 90 95 24.5 25
24379371 90 95 14.8 15
24380161 85 90 14.8 15
49004810 80 88 14.8 15
24373284 80 85 24.5 25
24370470 80 85 14.8 15
24380101 80 85 9.5 9.7
49002107 78 83 19.8 20
49004925 75 83 14.8 15
529802 75 80 14.8 15
528479 75 80 9.5 9.7
24367541 70 75 9.6 9.7
24380160 65 70 14.8 15
24367540 65 70 9.5 9.7
49000672 63 68 9.5 9.7
24375946 60 65 14.8 15
24380889 55 60 14.8 15
524832 55 60 9.6 9.7
24367539 50 55 9.6 9.7
24380507 45 50 14.8 15
24375662 45 50 9.6 9.7
24370469 40 45 9.6 9.7
24375389 28 31 5.5 5.6
533551 25 30 9.5 9.7
