Merkel Guide Ring Guviex KBK

Installation & Handling

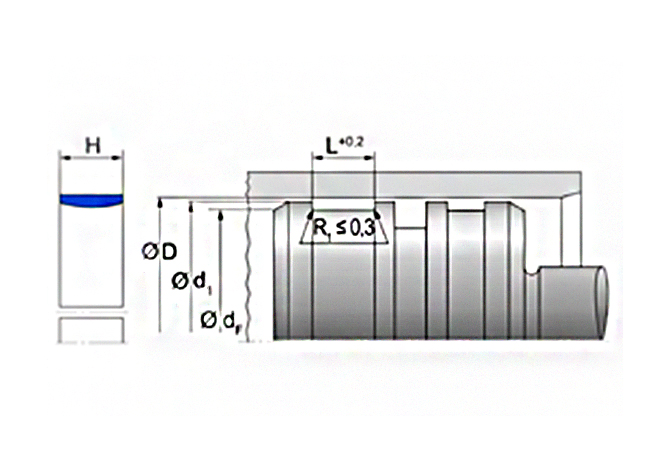

Installation dimensions

Material Properties

Seal Capabilities

Part No. ID OD H1 H2 Quantity Pick
531903 1442 1450 40 39.5
530020 1242 1250 25 24.5
533290 1192 1200 25 24.5
49002142 1152 1160 40 39.5
24376188 1042 1050 25 24.5
49003044 957 965 25 24.5
532858 942 952 25 24.5
24379050 942 950 25 24.5
49003031 857 865 40 39.5
531678 857 865 20 19.8
531637 842 850 25 24.5
24378000 792 800 25 24.5
49000238 792 800 20 19.8
24379321 752 760 40 39.5
24378498 732 740 35 34.5
49002676 702 710 40 39.5
49003965 692 700 35 34.5
24376187 692 700 25 24.5
526191 675 680 25 24.5
49004923 672 680 40 39.5
527133 672 680 25 24.5
531869 632 640 25 24.5
49002675 622 630 40 39.5
24379049 622 630 25 24.5
49004662 612 620 25 24.5
24378808 595 600 25 24.5
24379323 592 600 40 39.5
24377999 592 600 25 24.5
24379048 572 580 25 24.5
24377622 552 560 25 24.5
24378806 535 540 25 24.5
24379047 532 540 25 24.5
530276 522 530 25 24.5
531874 492 500 40 39.5
49002908 492 500 25 24.5
24378805 475 480 25 24.5
24378060 472 480 40 39.5
24379081 472 480 25 24.5
24379244 452 460 40 39.5
24379348 452 460 25 24.5
532899 433 441 40 39.5
49002762 432 440 25 24.5
49003308 422 430 40 39.5
24378059 412 420 40 39.5
24379046 412 420 25 24.5
531871 402 410 40 39.5
24378058 392 400 40 39.5
24378057 372 380 40 39.5
24378788 370 375 25 24.5
24379080 367 375 25 24.5
24378056 352 360 40 39.5
24379154 352 360 30 29.5
531639 352 360 25 24.5
533359 342 350 40 39.5
530277 342 350 25 24.5
528485 332 340 30 29.5
24379045 332 340 25 24.5
24379256 325 330 25 24.5
49004578 322 330 30 29.5
24378054 312 320 40 39.6
24379044 312 320 25 24.5
24380701 305 310 15 14.8
24378053 302 310 40 39.6
529484 295 300 35 34.5
24378787 295 300 25 24.5
528969 282 290 40 39.5
527111 275 280 25 24.5
24378052 272 280 40 39.5
49000025 265 270 35 34.5
24379079 265 270 25 24.5
24380700 263 268 15 14.8
529482 255 260 35 34.5
49002880 255 260 25 24.5
24378051 252 260 40 39.5
49002401 245 250 25 24.5
24378945 245 250 15 14.8
24378050 242 250 40 39.5
24379078 235 240 25 24.5
24380340 235 240 15 14.8
24378002 225 230 35 34.5
24378298 225 230 20 19.8
24372436 225 230 15 14.8
24380706 225 230 9.7 9.5
24380539 220 225 25 24.5
530604 217 225 40 39.5
49046270 215.5 223,5 40 39.5
24379368 215 220 25 34.5
49001458 215 220 25 24.5
49018312 215 220 15 14.8
24380699 210 215 15 14.8
49001642 205 210 35 34.5
49002879 205 210 15 14.8
24380417 195 200 35 34.5
24380416 195 200 30 29.5
24380282 195 200 20 19.8
49003728 195 200 15 14.8
24380583 192 200 35 34.5
24379077 185 190 25 24.5
49003727 185 190 15 14.8
24377817 175 180 35 34.5
24378947 175 180 15 14.8
49001427 175 180 9.7 9.5
24380555 172 180 25 24.5
526071 165 170 25 24.5
49003985 162 170 25 24.5
24379367 155 160 35 34.5
24380280 155 160 25 24.5
526097 155 160 20 19.8
24378946 155 160 15 14.8
529384 145 150 25 24.5
49001347 145 150 9.7 9.5
24380165 144 149 15 14.8
528117 135 140 25 24.5
24380281 135 140 20 19.8
24380185 135 140 15 14.8
528114 125 130 25 24.5
531549 125 130 20 19.8
49002077 125 130 9.7 9.5
49002431 124 130 20 19.8
24358243 122 130 25 24.5
24375948 120 125 15 14.8
49000675 120 125 9.7 9.5
24380279 115 120 20 19.8
49000752 115 120 15 14.8
49004872 112 120 25 24.5
24378948 110 115 15 14.8
24380278 105 110 20 19.8
49004871 102 110 25 24.5
24359047 102 110 20 19.8
24367544 100 105 9.7 9.5
24373283 95 100 20 19.8
24375947 95 100 15 14.8
49002078 95 100 9.7 9.5
49005017 92 100 20 19.8
528477 93 98 9.7 9.5
24380164 90 95 15 14.8
24378389 90 95 9.7 9.5
49000753 85 90 9.7 9.5
24380508 80 85 9.7 9.5
24378388 75 80 9.7 9.5
24379280 70 75 9.7 9.5
49005284 67 75 15 14.8
24378390 65 70 9.7 9.5
24379281 60 65 9.7 9.5
24377609 58 63 9.7 9.5
24381008 55 60 9.7 9.5
24376320 45 50 9.7 9.5
24373629 35 40 25 14.8
