Merkel Guide Ring Strip KF

Installation & Handling

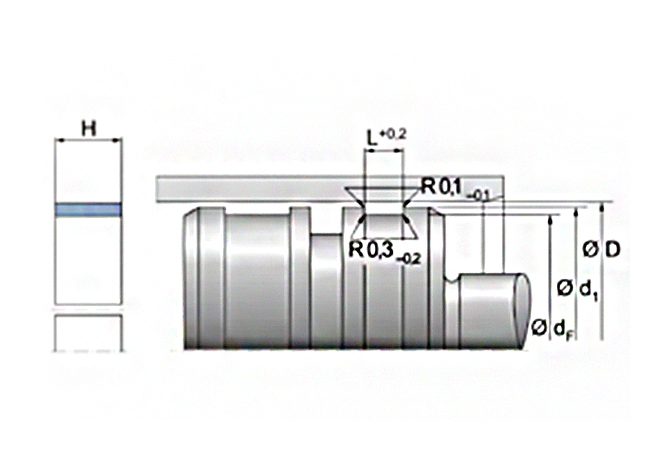

Installation dimensions

Material Properties

Seal Capabilities

Part No. ID OD H1 H2 Quantity Pick
24357283 1292 1300 25 24.5
24359446 1192 1200 15 14.8
24361406 1172 1180 25 24.5
24167297 1132 1140 20 19.5
24269869 1092 1100 25 24.5
24227975 1045 1050 25 24.5
24257242 1042 1050 25 24.5
24162989 995 1000 25 24.5
24331520 957.2 965.2 25 24.5
24295215 957 965 25 24.5
24263608 957 965 15 14.8
24163720 935 940 25 24.5
24352164 932 940 25 24.5
24258318 915 920 25 24.5
24354414 906.5 914.5 25 24.5
24162990 895 900 25 24.5
24344380 892 900 25 24.5
24238053 892 900 20 19.5
24163721 845 850 25 24.5
24265124 845 850 20 19.5
24300402 842 850 25 24.5
24353637 825 830 25 24.5
24354856 822 830 25 24.5
24341042 812 820 25 24.5
24249318 804.8 812.8 25 24.5
24243176 792 800 25 24.5
24348279 792 800 15 14.8
24358668 775 780 15 14.8
24245794 770 775 25 24.5
24344270 762 770 15 14.8
24162992 755 760 25 24.5
24216170 752 760 20 19.5
24216171 752 760 15 14.8
24293964 742 750 25 24.5
24340198 720 725 25 24.5
24240256 715 720 25 24.5
24291417 715 720 20 19.5
24348252 715 720 15 14.8
24355876 712 720 25 24.5
24226253 712 720 20 19.5
24162128 705 710 20 19.5
24338859 695 700 25 24.5
24275183 695 700 15 14.8
24349705 692 700 25 24.5
24361405 682 690 25 24.5
24357190 675 680 25 24.5
24298430 672 680 25 24.5
24344269 672 680 15 14.8
24336379 660 665 25 24.5
24361508 652.4 660.4 25 24.5
24231930 650 655 25 24.5
24239182 645 650 25 24.5
24358984 642 650 25 24.5
24275167 632 640 25 24.5
24263466 625 630 25 24.5
24161640 625 630 15 14.8
24352637 620 625 15 14.8
24234912 595 600 25 24.5
24329803 595 600 20 19.5
24234910 595 600 15 14.8
24275000 592 600 25 24.5
24362368 576.2 584.2 25 24.5
24339500 575 580 25 24.5
24344267 572 580 15 14.8
24351060 562 570 25 24.5
24352095 562 570 15 14.8
24269185 555 560 25 24.5
24351466 555 560 15 14.8
24359710 552 560 25 24.5
24257339 545 550 25 24.5
24250579 540 545 25 24.5
24339008 535 540 25 24.5
24258834 525 530 15 14.8
24224011 515.7 520.7 15 14.8
24230163 515 520 20 19.5
24355928 502.2 510.2 25 24.5
24360396 505 510 25 24.5
24291161 505 510 15 14.8
24263977 495 500 25 24.5
24274580 495 500 15 14.8
24261230 492 500 25 24.5
24344266 492 500 15 14.8
24250182 475 480 25 24.5
24298510 472 480 25 24.5
24258000 455 460 25 24.5
24216297 455 460 20 19.5
24237495 455 460 15 14.8
24361018 449.2 457.2 25 24.5
24339916 445 450 25 24.5
24218386 445 450 20 19.5
24295904 445 450 15 14.8
24336064 442 450 25 24.5
24169312 440 445 25 24.5
24238056 435 440 25 24.5
24362293 435 440 15 14.8
24356343 425 430 25 24.5
24274579 425 430 15 14.8
24298563 415 420 25 24.5
24246829 415 420 20 19.5
24292267 405 410 25 24.5
24237477 395 400 25 24.5
24241924 395 400 20 19.5
24300225 395 400 15 14.8
24353170 392 400 25 24.5
24215936 385 390 25 24.5
24248042 385 390 20 19.5
24344184 382 390 25 24.5
24299555 375 380 25 24.5
24257157 375 380 20 19.5
24164558 355 360 25 24.5
24300224 355 360 15 14.8
24298511 352 360 25 24.5
24266168 352 360 15 14.8
24336608 350 355 25 24.5
24234725 345 350 15 14.8
24316713 345 350 9.7 9.6
24300223 335 340 25 24.5
24300222 335 340 15 14.8
24314011 325 330 25 24.5
24296714 325 330 15 14.8
24300221 315 320 25 24.5
24231223 315 320 20 19.5
24300220 315 320 15 14.8
24245663 312 320 20 19.5
24237194 305 310 25 24.5
24350592 300 305 15 14.8
24134951 295 300 25 24.5
24137238 295 300 15 14.8
24203990 275 280 25 24.5
24153362 275 280 20 19.5
24300219 275 280 15 14.8
24332002 265 270 25 24.5
24238840 265 270 15 14.8
24293567 255 260 25 24.5
24300218 255 260 15 14.8
24338719 245 250 20 19.5
24300217 245 250 15 14.8
24344263 245 250 9.7 9.6
24167876 235 240 15 14.8
24233567 225 230 20 19.5
24338432 225 230 15 14.8
24298509 220 225 25 24.5
24260604 220 225 20 19.5
24169846 220 225 15 14.8
24259939 220 225 9.7 9.6
24300216 215 220 9.7 9.6
24290417 215 220 25 24.5
24340941 215 220 20 19.5
24203911 215 220 15 14.8
24301068 205 210 9.7 9.6
24236228 205 210 15 14.8
24306765 195 200 25 24.5
24227497 195 200 20 19.5
24300215 195 200 15 14.8
24300214 195 200 9.7 9.6
24300212 185 190 9.7 9.6
24300213 185 190 15 14.8
24258396 175 180 25 24.5
24203474 175 180 9.7 9.6
24219351 175 180 15 14,8
24336310 165 170 20 19.5
24300210 165 170 9.7 9.6
24300211 165 170 15 14.8
24217554 155 160 20 19.5
24300209 155 160 15 14.8
24168887 155 160 9.7 9.6
24169405 150 155 9.7 9.6
24243485 145 150 25 24.5
24336312 145 150 20 19.5
24169689 145 150 15 14.8
24300208 145 150 9.7 9.6
24338745 135 140 25 24.5
24339882 135 140 20 19.5
24236467 135 140 15 14.8
24102436 135 140 9.7 9.6
24340099 130 135 15 14.8
24203611 130 135 9.7 9.6
24166634 125 130 20 19.5
24153612 125 130 9.7 9.6
24300206 125 130 15 14.8
24165043 120 125 15 14.8
24204056 120 125 9.7 9.6
24166736 115 120 9.7 9.6
24300203 115 120 15 14.8
24153613 110 115 9.7 9.6
24243431 105 110 20 19.5
24291125 105 110 15 14.8
24165147 105 110 9.7 9.6
24333282 100 105 25 24.5
24216699 100 105 9.7 9.6
24311931 95 100 25 24.5
24165294 95 100 15 14.8
24153611 95 100 9.7 9.6
24343224 90 95 15 14.8
24300197 90 95 9.7 9.6
24229424 85 90 20 19.5
24164295 85 90 15 14.8
24165145 85 90 9.7 9.6
24258738 80 85 15 14.8
24169641 80 85 9.7 9.6
24217207 75 80 9.7 9.6
24264453 71 76 9.7 9.6
24300193 70 75 9.7 9.6
24338058 65 70 15 14.8
24165146 65 70 9.7 9.6
24300192 60 65 9.7 9.6
24169847 58 63 9.7 9.6
24163238 55 60 9.7 9.6
24210205 55 60 5.6 5.5
24260615 51 56 5.6 5.5
24300190 50 55 5.6 5.5
24340072 45 50 9.7 9.6
24162171 45 50 5.6 5.5
24312965 42 45 5.6 5.5
24108647 40 45 5.6 5.5
24300189 37 42 5.6 5.5
24300188 37 40 5.6 5.5
24168850 35 40 5.6 5.5
24300187 33 36 5.6 5.5
24300186 32 35 5.6 5.5
24300185 29 32 5.6 5.5
24300184 27 30 5.6 5.5
24300183 25 28 5.6 5.5
24300182 22 25 5.6 5.5
24300180 19 22 5.6 5.5
24300179 17 20 5.6 5.5
