Merkel omegat OMS-MR
Tìm sản phẩm
Giỏ hàng 0
Sản phẩm
Số lượng
Yêu cầu báo giá
Loại sản phẩm
Thương hiệu
Part No.
Kích thước lắp đặt
  • Đường kính trong ID
    mm
  • Đường kính ngoài OD
    mm
  • Chiều cao phốt H1
    mm
  • Chiều cao khe lắp H2
    mm

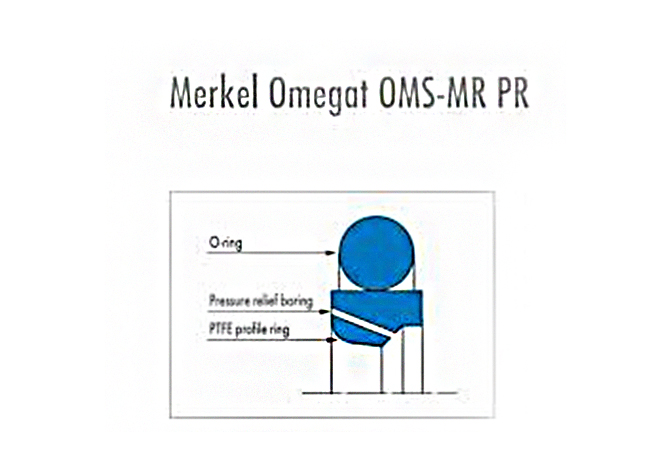

Merkel omegat OMS-MR

Cài đặt và xử lý

Kích thước lắp đặt

Thuộc tính vật liệu

Khả năng niêm phong

Download Chi tiết kỹ thuật (PDF)
Part No. ID OD H1 H2 Số lượng Chọn
24346876 130 145.1 5.9 6.3
24298480 130 145.1 5.9 6.3
24193747 130 145.1 5.9 6.3
24131217 125 140.1 5.9 6.3
24332957 125 140.1 5.9 6.3
24179238 125 140.1 5.9 6.3
24292144 120 135.1 5.9 6.3
24214075 120 135.1 5.9 6.3
24196902 120 135.1 5.9 6.3
24344729 115 130.1 5.9 6.3
24179237 115 130.1 5.9 6.3
24131216 115 130.1 5.9 6.3
24375984 111.1 126.2 5.9 6.3
24301675 110 125.1 5.9 6.3
24179236 110 125.1 5.9 6.3
24119466 110 125.1 5.9 6.3
24138660 105 120.1 5.9 6.3
24302829 105 120.1 5.9 6.3
24214072 105 120.1 5.9 6.3
24314801 100 115.1 5.9 6.3
24178455 100 115.1 5.9 6.3
24131215 100 115.1 5.9 6.3
24223698 95 110.1 5.9 6.3
24213071 95 110.1 5.9 6.3
24334402 90 105.1 5.9 6.3
24178454 90 105.1 5.9 6.3
24111803 90 105.1 5.9 6.3
24329122 85 100.1 5.9 6.3
24178453 85 100.1 5.9 6.3
24110740 85 100.1 5.9 6.3
24275322 80 95.1 5.9 6.3
24121483 80 95.1 5.9 6.3
24334161 80 90.7 4 4.2
24178451 75 90.1 5.9 6.3
24263440 75 90.1 5.9 6.3
24121487 75 90.1 5.9 6.3
24178450 70 85.1 5.9 6.3
24110738 70 85.1 5.9 6.3
24178449 65 80.1 5.9 6.3
24344723 65 80.1 5.9 6.3
24131214 65 80.1 5.9 6.3
24245797 63 78.1 5.9 6.3
24190727 63 78.1 5.9 6.3
24131213 63 78.1 5.9 6.3
24178447 60 75.1 5.9 6.3
24288710 60 75.1 5.9 6.3
24105984 60 75.1 5.9 6.3
24250623 60 70.7 4 4.2
24223162 60 70.7 4 4.2
24131184 60 70.7 4 4.2
24178446 56 71.1 5.9 6.3
24265478 56 71.1 5.9 6.3
24101265 56 71.1 5.9 6.3
24244976 56 66.7 4 4.2
24223159 56 66.7 4 4.2
24131183 56 66.7 4 4.2
24178445 55 70.1 5.9 6.3
24245798 55 70.1 5.9 6.3
24131212 55 70.1 5.9 6.3
24344722 55 65.7 4 4.2
24262488 55 65.7 4 4.2
24262485 55 65.7 4 4.2
24178444 50 65.1 5.9 6.3
24262762 50 65.1 5.9 6.3
24131211 50 65.1 5.9 6.3
24232029 50 60.7 4 4.2
24223156 50 60.7 4 4.2
24131181 50 60.7 4 4.2
24178443 45 60.1 5.9 6.3
24334150 45 60.1 5.9 6.3
24101569 45 60.1 5.9 6.3
24260922 45 55.7 4 4.2
24223153 45 55.7 4 4.2
24131180 45 55.7 4 4.2
24178442 42 57.1 5.9 6.3
24314958 42 57.1 5.9 6.3
24131210 42 57.1 5.9 6.3
24300453 42 52.7 4 4.2
24223150 42 52.7 4 4.2
24131179 42 52.7 4 4.2
24178441 40 55.1 5.9 6.3
24262761 40 55.1 5.9 6.3
24113841 40 55.1 5.9 6.3
24238040 40 50.7 4 4.2
24223147 40 50.7 4 4.2
24131178 40 50.7 4 4.2
24178440 36 46.7 4 4.2
24315180 36 46.7 4 4.2
24113843 36 46.7 4 4.2
24246483 36 43.3 3 3.2
24223138 36 43.3 3 3.2
24131177 36 43.3 3 3.2
24178439 35 45.7 4 4.2
24296131 35 45.7 4 4.2
24131209 35 45.7 4 4.2
24309807 35 42.3 3 3.2
24223135 35 42.3 3 3.2
24131176 35 42.3 3 3.2
24178438 32 42.7 4 4.2
24296466 32 42.7 4 4.2
24122880 32 42.7 4 4.2
24250622 32 39.3 3 3.2
24223132 32 39.3 3 3.2
24131175 32 39.3 3 3.2
24178437 30 40,7 4 4.2
24263335 30 40.7 4 4.2
24108645 30 40.7 4 4.2
24268382 30 37.3 3 3.2
24223129 30 37.3 3 3.2
24131174 30 37.3 3 3.2
24178436 28 38.7 4 4.2
24311631 28 38.7 4 4.2
24131208 28 38.7 4 4.2
24296908 28 35.3 3 3.2
24223126 28 35.3 3 3.2
24131173 28 35.3 3 3.2
24178435 25 35.7 4 4.2
24344719 25 35.7 4 4.2
24131207 25 35.7 4 4.2
24245536 25 32.3 3 3.2
24223123 25 32.3 3 3.2
24131172 25 32.3 3 3.2
24178434 22 32.7 4 4.2
24290506 22 32.7 4 4.2
24131206 22 32.7 4 4.2
24332956 22 29.3 3 3.2
24223120 22 29.3 3 3.2
24131171 22 29.3 3 3.2
24178433 20 30.7 4 4.2
24263334 20 30.7 4 4.2
24126068 20 30.7 4 4.2
24245538 20 27.3 3 3.2
24223117 20 27.3 3 3.2
24102890 20 27.3 3 3.2
24178432 18 25.3 3 3.2
24127305 18 25.3 3 3.2
24223114 18 22.9 2 2.2
24131170 18 22.9 2 2.2
24178431 16 23.3 3 3.2
24336058 16 23.3 3 3.2
24131205 16 23.3 3 3.2
24245539 16 20.9 2 2.2
24223111 16 20.9 2 2.2
24208889 16 20.9 2 2.2
24178430 15 22.3 3 3.2
24131204 15 22.3 3 3.2
24223108 15 19.9 2 2.2
24131168 15 19.9 2 2.2
24178429 14 21.3 3 3.2
24131203 14 21.3 3 3.2
24131167 14 18.9 3 2.2
24223105 14 18.9 2 2.2
24178428 12 19.3 3.2 3.2
24258028 12 19.3 3 3.2
24131202 12 19.3 3 3.2
24260924 12 16.9 2 2.2
24223102 12 16.9 2 2.2
24131166 12 16.9 2 2.2
24178427 10 17.3 3 3.2
24339787 10 17.3 3 3.2
24131201 10 17.3 3 3.2
24260923 10 14.9 2 2.2
24223099 10 14.9 2 2.2
24131165 10 14.9 2 2.2
