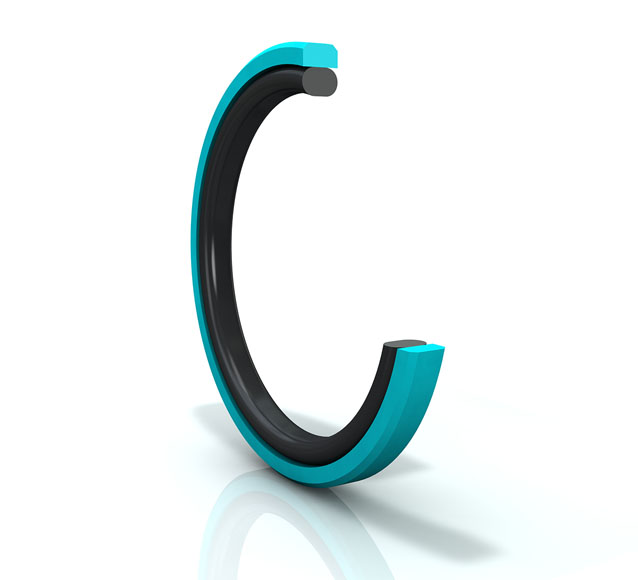

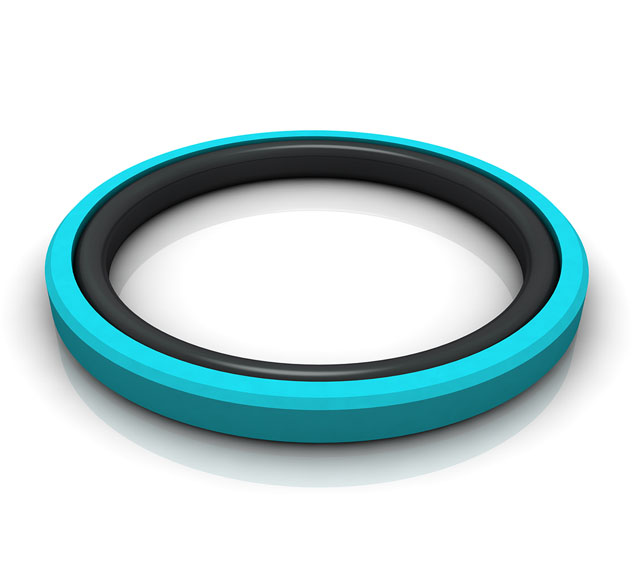

Turcon® Glyd Ring®

Successfully used for decades, the Turcon® Glyd Ring® is a very effective and reliable low friction seal. It is particularly suitable as a piston seal in both high and low pressure systems.

Mô tả thương mại

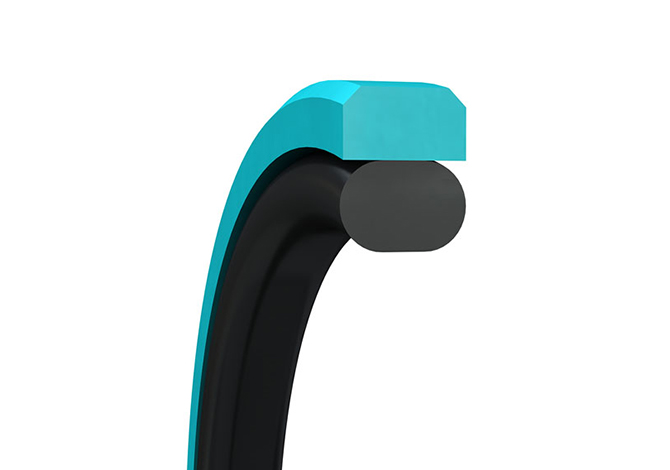

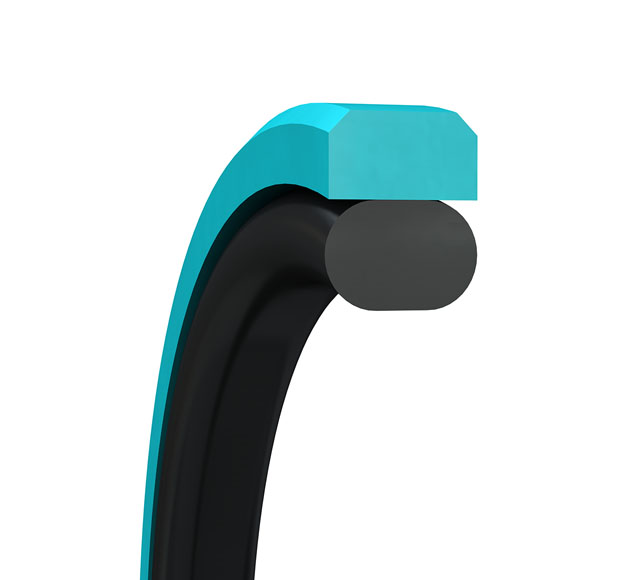

The double acting Turcon® Glyd Ring® is a combination of a Turcon® based slipper seal and an energising O-Ring. It is produced with an interference fit which together with the squeeze of the O-Ring ensures a good sealing effect even at low pressure. At higher system pressures, the O-Ring is energised by the fluid, pushing the Turcon® Glyd Ring® against the sealing face with increased force.

Cài đặt và xử lý

To assure rapid energizing of the seal takes place at sudden changes of pressure and direction of motion, radial notches are machined on both sides of the seal for all diameters greater than 20 mm

Kích thước lắp đặt

Thuộc tính vật liệu

  • Pressure : Reciprocating up to approximately 50 MPa
  • Speed : Reciprocating up to approximately 15 m/s
  • Temperature : -200 °C to +260 °C (depending on the material)
  • Media : Mineral oil based hydraulic fluids, flame retardant hydraulic fluids, environmentally safe hydraulic fluids (bio-oils), phosphate ester, water and others, depending on the seal and O-Ring material compatibility
  • Clearance : The maximum permissible radial clearance Smax is shown in the following installation dimension table as a function of the operating pressure and functional diameter

Khả năng niêm phong

  • No stick-slip effect when starting for smooth operation
  • Minimum static and dynamic friction coefficient for a minimum energy loss and operating temperature
  • Suitable for non-lubricating fluids depending on seal material for optimum design flexibility
  • High wear resistance ensures long service life
  • Installation grooves acc. to ISO 7425/1
  • No adhesive effect to the mating surface during long period of inactivity or storage
  • Suitable for most hydraulic fluids in relation with most modern hardware materials and surface finish depending on material select
Download Chi tiết kỹ thuật (PDF)
Part No. ID OD H1 H2 Số lượng Chọn
PG4406400-T10N 615.5 640.0 8.1
PG4405000-T46V 475.5 500.0 8.1
PG4405000-T46N 475.5 500.0 8.1
PG4404800-T46V 455.5 480.0 8.1
PG4404800-T46N 455.5 480.0 8.1
PG4404600-T46N 435.5 460.0 8.1
PG4404500-T46V 425.5 450.0 8.1
PG4404500-T46N 425.5 450.0 8.1
PG4404400-T46N 415.5 440.0 8.1
PG4404400-T05V 415.5 440.0 8.1
PG4404400-T05N 415.5 440.0 8.1
PG4404200-T46V 395.5 420.0 8.1
PG4404200-T46N 395.5 420.0 8.1
PG4404000-T46V 375.5 400.0 8.1
PG4404000-T46N 375.5 400.0 8.1
PG4403800-T46N 355.5 380.0 8.1
PG4403700-M12N 345.5 370.0 8.1
PG4403600-T46V 335.5 360.0 8.1
PG4403600-T46N 335.5 360.0 8.1
PG4403500-T46V 325.5 350.0 8.1
PG4403500-T46N 325.5 350.0 8.1
PG4403400-T46V 315.5 340.0 8.1
PG4403400-T46N 315.5 340.0 8.1
PG4403300-T46N 305.5 330.0 8.1
PG4403200-T46V 299.0 320.0 8.1
PG4403200-T46N 299.0 320.0 8.1
PG4403100-T29N 289.0 310.0 8.1
PG4403000-T46V 279.0 300.0 8.1
PG4403000-T46N 279.0 300.0 8.1
PG4403000-T29N 279.0 300.0 8.1
PG4402900-T46N 269.0 290.0 8.1
PG4402800-T46V 259.0 280.0 8.1
PG4402800-T46N 259.0 280.0 8.1
PG4402800-T29N 259.0 280.0 8.1
PG4402700-T46V 249.0 270.0 8.1
PG4402700-T46N 249.0 270.0 8.1
PG4402700-M12N 249.0 270.0 8.1
PG4402600-T46N 239.0 260.0 8.1
PG4402500-T46V 229.0 250.0 8.1
PG4402500-T46N 229.0 250.0 8.1
PG4402500-T29N 229.0 250.0 8.1
PG4402400-T46V 219.0 240.0 8.1
PG4402400-T46N 219.0 240.0 8.1
PG4402200-T46V 199.0 220.0 8.1
PG4402200-T46N 199.0 220.0 8.1
PG4402100-T46N 189.0 210.0 8.1
PG4402000-T46V 179.0 200.0 8.1
PG4402000-T46N 179.0 200.0 8.1
PG4402000-T29N 179.0 200.0 8.1
PG4402000-T05V 179.0 200.0 8.1
PG4402000-T05N 179.0 200.0 8.1
PG4401900-T46N 169.0 190.0 8.1
PG4401900-M12N 169.0 190.0 8.1
PG4401800-T46V 159.0 180.0 8.1
PG4401800-T46N 159.0 180.0 8.1
PG4401800-T29N 159.0 180.0 8.1
PG4401800-M12N 159.0 180.0 8.1
PG4401750-T29N 154.0 175.0 8.1
PG4401700-T46N 149.0 170.0 8.1
PG4401700-T29N 149.0 170.0 8.1
PG4401650-T46N 144.0 165.0 8.1
PG4401650-T29N 144.0 165.0 8.1
PG4401600-T46V 139.0 160.0 8.1
PG4401600-T46N 139.0 160.0 8.1
PG4401600-T29N 139.0 160.0 8.1
PG4401600-M12N 139.0 160.0 8.1
PG4401500-T46V 129.0 150.0 8.1
PG4401500-T46N 129.0 150.0 8.1
PG4401500-T29N 129.0 150.0 8.1
PG4401500-M12N 129.0 150.0 8.1
PG4401450-T29N 124.0 145.0 8.1
PG4401400-T46V 119.0 140.0 8.1
PG4401400-T46N 119.0 140.0 8.1
PG4401400-T29N 119.0 140.0 8.1
PG4401400-T10N 119.0 140.0 8.1
PG4401400-T05V 119.0 140.0 8.1
PG4401400-T05N 119.0 140.0 8.1
PG4401350-T46N 114.0 135.0 8.1
PG4401300-T46N 114.5 130.0 6.3
PG4401300-T29N 114.5 130.0 6.3
PG4401300-T05V 114.5 130.0 6.3
PG4401300-T05N 114.5 130.0 6.3
PG4401250-T46V 109.5 125.0 6.3
PG4401250-T46N 109.5 125.0 6.3
PG4401250-T29N 109.5 125.0 6.3
PG4401250-M12N 109.5 125.0 6.3
PG4401200-T46V 104.5 120.0 6.3
PG4401200-T46N 104.5 120.0 6.3
PG4401200-T05V 104.5 120.0 6.3
PG4401200-T05N 104.5 120.0 6.3
PG4401200-M12N 104.5 120.0 6.3
PG4401150-T46V 99.5 115.0 6.3
PG4401100-T46N 94.5 110.0 6.3
PG4401100-T29N 94.5 110.0 6.3
PG4401100-M12N 94.5 110.0 6.3
PG4401080-T05V 92.5 108.0 6.3
PG4401080-T05N 92.5 108.0 6.3
PG4401050-T46N 89.5 105.0 6.3
PG4401050-T29N 89.5 105.0 6.3
PG4401050-M12N 89.5 105.0 6.3
PG4401000-T46V 84.5 100.0 6.3
PG4401000-T46N 84.5 100.0 6.3
PG4401000-T10V 84.5 100.0 6.3
PG4401000-T10N 84.5 100.0 6.3
PG4401000-M12N 84.5 100.0 6.3
PG4400950-T46N 79.5 95.0 6.3
PG4400900-T46N 74.5 90.0 6.3
PG4400900-T10T 74.5 90.0 6.3
PG4400900-T05V 74.5 90.0 6.3
PG4400900-T05N 74.5 90.0 6.3
PG4400900-M12V 74.5 90.0 6.3
PG4400900-M12N 74.5 90.0 6.3
PG4400850-T46N 69.5 85.0 6.3
PG4400800-T46V 64.5 80.0 6.3
PG4400800-T46T 64.5 80.0 6.3
PG4400800-T46N 64.5 80.0 6.3
PG4400800-T29N 64.5 80.0 6.3
PG4400800-M12V 64.5 80.0 6.3
PG4400750-T46N 64.0 75.0 4.2
PG4400700-Z80N 59.0 70.0 4.2
PG4400700-T46V 59.0 70.0 4.2
PG4400700-T46N 59.0 70.0 4.2
PG4400700-T42V 59.0 70.0 4.2
PG4400700-T05V 59.0 70.0 4.2
PG4400700-T05N 59.0 70.0 4.2
PG4400700-M12N 59.0 70.0 4.2
PG4400650-T46N 54.0 65.0 4.2
PG4400650-T10N 54.0 65.0 4.2
PG4400630-T46V 52.0 63.0 4.2
PG4400630-T46N 52.0 63.0 4.2
PG4400630-T29N 52.0 63.0 4.2
PG4400600-T46V 49.0 60.0 4.2
PG4400600-T46N 49.0 60.0 4.2
PG4400600-T29N 49.0 60.0 4.2
PG4400600-T05V 49.0 60.0 4.2
PG4400600-T05N 49.0 60.0 4.2
PG4400600-M12N 49.0 60.0 4.2
PG4400550-T46N 44.0 55.0 4.2
PG4400550-T05V 44.0 55.0 4.2
PG4400550-T05N 44.0 55.0 4.2
PG4400550-M12N 44.0 55.0 4.2
PG4400500-Z80N 39.0 50.0 4.2
PG4400500-T46V 39.0 50.0 4.2
PG4400500-T46T 39.0 50.0 4.2
PG4400500-T46N 39.0 50.0 4.2
PG4400500-T29N 39.0 50.0 4.2
PG4400500-T10V 39.0 50.0 4.2
PG4400500-T10T 39.0 50.0 4.2
PG4400500-T10N 39.0 50.0 4.2
PG4400500-T05V 39.0 50.0 4.2
PG4400500-T05N 39.0 50.0 4.2
PG4400500-M12V 39.0 50.0 4.2
PG4400500-M12N 39.0 50.0 4.2
PG4400450-T46V 34.0 45.0 4.2
PG4400450-T46N 34.0 45.0 4.2
PG4400450-T05V 34.0 45.0 4.2
PG4400450-T05N 34.0 45.0 4.2
PG4400450-M12N 34.0 45.0 4.2
PG4400420-T46V 31.0 42.0 4.2
PG4400420-T46N 31.0 42.0 4.2
PG4400420-T05V 31.0 42.0 4.2
PG4400420-T05N 31.0 42.0 4.2
PG4400400-T46V 29.0 40.0 4.2
PG4400400-T46N 29.0 40.0 4.2
PG4400400-T10V 29.0 40.0 4.2
PG4400400-T10N 29.0 40.0 4.2
PG4400380-T46N 30.5 38.0 3.2
PG4400380-T10N 30.5 38.0 3.2
PG4400380-T05V 30.5 38.0 3.2
PG4400380-T05N 30.5 38.0 3.2
PG4400360-T46N 28.5 36.0 3.2
PG4400350-Z80N 27.5 35.0 3.2
PG4400350-T46V 27.5 35.0 3.2
PG4400350-T46T 27.5 35.0 3.2
PG4400350-T46N 27.5 35.0 3.2
PG4400350-T10N 27.5 35.0 3.2
PG4400350-T05V 27.5 35.0 3.2
PG4400350-T05N 27.5 35.0 3.2
PG4400320-T46V 27.5 35.0 3.2
PG4400320-T46N 24.5 32.0 3.2
PG4400320-T10N 24.5 32.0 3.2
PG4400320-T05V 24.5 32.0 3.2
PG4400320-T05N 24.5 32.0 3.2
PG4400300-T46V 22.5 30.0 3.2
PG4400300-T46N 22.5 30.0 3.2
PG4400300-T05V 22.5 30.0 3.2
PG4400300-T05N 22.5 30.0 3.2
PG4400300-M12N 22.5 30.0 3.2
PG4400280-T46N 20.5 28.0 3.2
PG4400280-T05V 20.5 28.0 3.2
PG4400280-T05N 20.5 28.0 3.2
PG4400280-M12N 20.5 28.0 3.2
PG4400250-Z80N 17.5 25.0 3.2
PG4400250-T46V 17.5 25.0 3.2
PG4400250-T46N 17.5 25.0 3.2
PG4400250-T05V 17.5 25.0 3.2
PG4400250-T05N 17.5 25.0 3.2
PG4400240-Z80N 16.5 24.0 3.2
PG4400240-T46V 16.5 24.0 3.2
PG4400240-T46N 16.5 24.0 3.2
PG4400220-T46V 14.5 22.0 3.2
PG4400220-T46N 14.5 22.0 3.2
PG4400200-T46V 12.5 20.0 3.2
PG4400200-T46N 12.5 20.0 3.2
PG4400200-T05V 12.5 20.0 3.2
PG4400200-T05N 12.5 20.0 3.2
PG4400190-T46V 11.5 19.0 3.2
PG4400190-T46N 11.5 19.0 3.2
PG4400160-T10N 8.5 16.0 3.2
PG4400160-M12N 8.5 16.0 3.2
PG4400150-M12N 7.5 15.0 3.2
PG4400140-T46V 9.1 14.0 2.2
PG4400140-T46N 9.1 14.0 2.2
PG4400140-T05V 9.1 14.0 2.2
PG4400140-T05N 9.1 14.0 2.2
PG4400120-T46N 7.1 12.0 2.2
PG4400120-T05V 7.1 12.0 2.2
PG4400120-T05N 7.1 12.0 2.2
PG4400100-T46V 5.1 10.0 2.2
PG4400100-T46N 5.1 10.0 2.2
PG4400100-T05V 5.1 10.0 2.2
PG4400100-T05N 5.1 10.0 2.2
